 Berikut ini data standar dari Tv Sharp Qbeat:
|
Rabu, 10 April 2013
Parameter dan Data IC Eprom TV Sharp Qbeat
Kerusakkan Yang Menyebabkan Siaran Bergeser
Lagi asyik-asyiknya nonton tv tiba-tiba siaran bergeser ,kadang cuma geser sedikit kadang juga banyak hingga membuat gambar tidak enak di tonton tentu menjengkelkan.
Komponen apa saja yang bisa menyebabkan siaran geser di antaranya:
Masih banyak lagi penyebab bergesernya siaran televisi yang belum bisa di utarakan disini mungkin ada rekan-rekan yang mau berbagi pengalamannya disini.Mohon maaf jika ada kekeliruan dalam menulis karena keterbatasan ilmu saya.
Terimakasih.
Komponen apa saja yang bisa menyebabkan siaran geser di antaranya:
- Tuner. Bagian ini merupakan komponen yang pertamakali menerima sinyal Radio dari pemancar Televisi.Disini sinyal RF diubah menjadi sinyal menengah (IF).Jika komponen tuner ini rusak ada beberapa gejala yang pernah saya temui diantaranya Siaran tidak ada samasekali,sinyal penerimaan lemah padahal antena sudah tinggi,siaran geser hingga membuat gambar tidak nampak (seperti gelombang air) kadang suaranya yang noise,salah satu atau dua band tidak berfungsi (UHF,VHF,VHFL tidak berfungsi).
-Dioda Zener 33 volt.Tegangan 33 volt sangat vital untuk mengunci frekuensi siaran (channel)maka sangat dibutuhkan tegangan yang sangat stabil,jika tegangan kurang stabil maka siaran akan bergeser.Dalam beberapa kasus dioda zener 33 volt ini sering rusak terutama jika panas berlebih (biasanya untuk kasus ini siaran akan bergeser setelah tv menyala beberapa saat,kadang dalam hitungan menit kadang hitungan jam).
-Resistor .Resistor ini untuk menghambat laju tegangan 33 volt yang akan masuk ke VT tuner biasanya Resistor ini berubah nilainya (15K).Dalam kasus yang saya temui resistor yang mensuplai tegangan 33 volt ini jika panas berubah nilainya.
-Kapasitor.Untuk memperhalus tegangan yang menuju VT (filter tegangan) dalam beberapa kasus kapasitor ini kondisinya kering sehingga jika kondisi panas siaran akan bergeser.
-Transistor.Sering saya menemui komponen ini jenuh,jadi jika di ukur memakai multitester normal tapi jika di pasang tidak berfungsi dengan baik.
-Trafo iF.Dalam beberapa kasus rusaknya trafo ini akan mengakibatkan siaran bergeser,bisa karena diputar putar sembarangan sehingga membuat berubahnya frekuensi IF.
Masih banyak lagi penyebab bergesernya siaran televisi yang belum bisa di utarakan disini mungkin ada rekan-rekan yang mau berbagi pengalamannya disini.Mohon maaf jika ada kekeliruan dalam menulis karena keterbatasan ilmu saya.
Terimakasih.
Cara mengatasi Tv Sharp Minta Password tanpa Remote
Mungkin rekan-rekan semua pernah mengalami kasus seperti saya Tv Sharp minta password seperti gambar diatas,sebenarnya kasusnya sangat simpel kalau ada remotenya.
Biasanya Password bisa direset dengan memasukkan angka "0000" atau"2398" maka password akan terbuka.
Tapi lain ceritanya jikalau tvnya tidak ada remotenya dan berada di daerah pelosok.
Rekan-rekan bisa membuka password tanpa remote dengan cara masuk ke servis mode tv sharp,biasanya menghubungkan dua buah jumper di main board (PCB) maka tv akan menyala normal,selanjutkan tinggal menonaktifkan Password tv di menu utama.
Semoga bermanfaat.
LCD Polytron 123 Mati Total

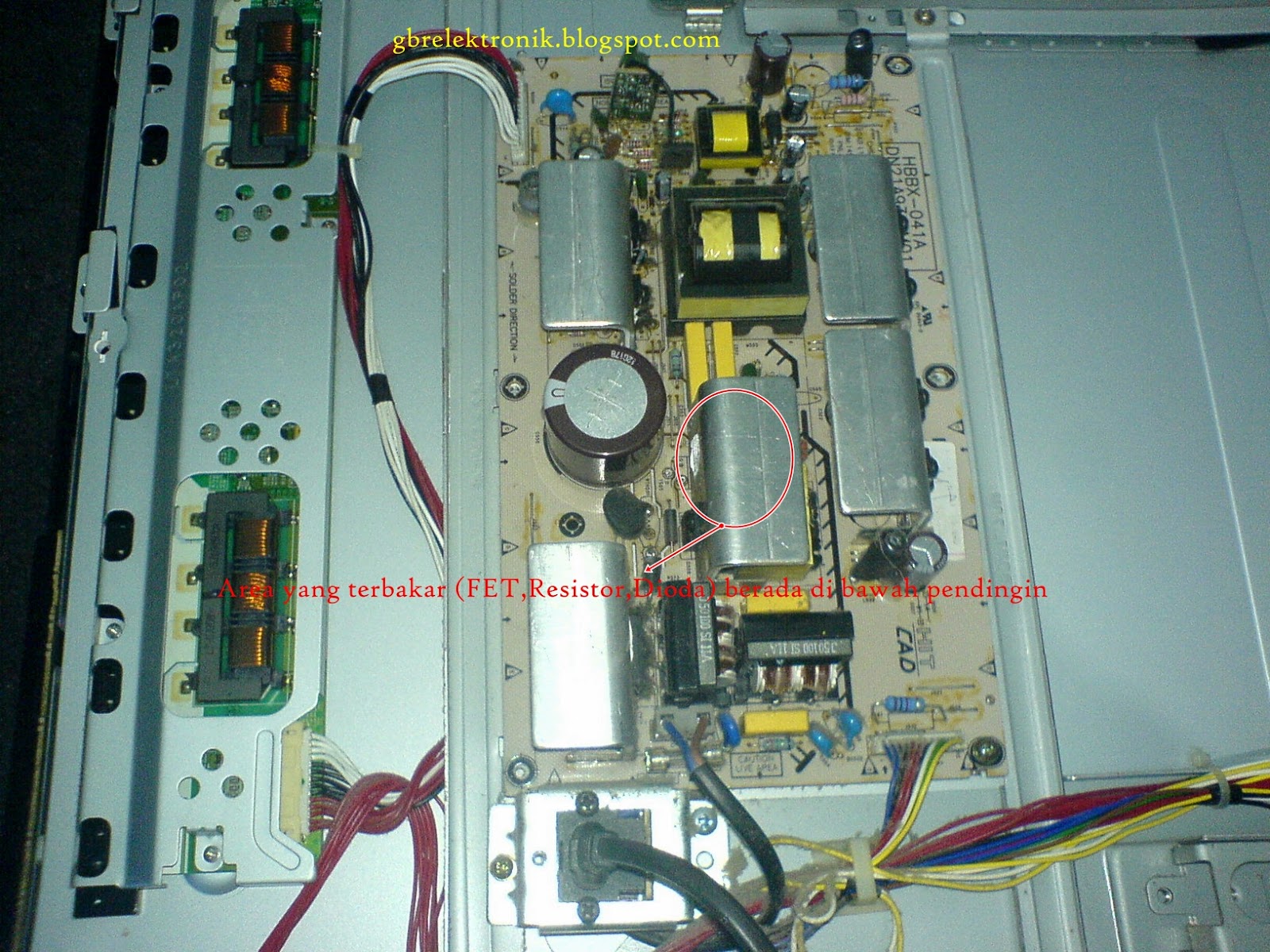

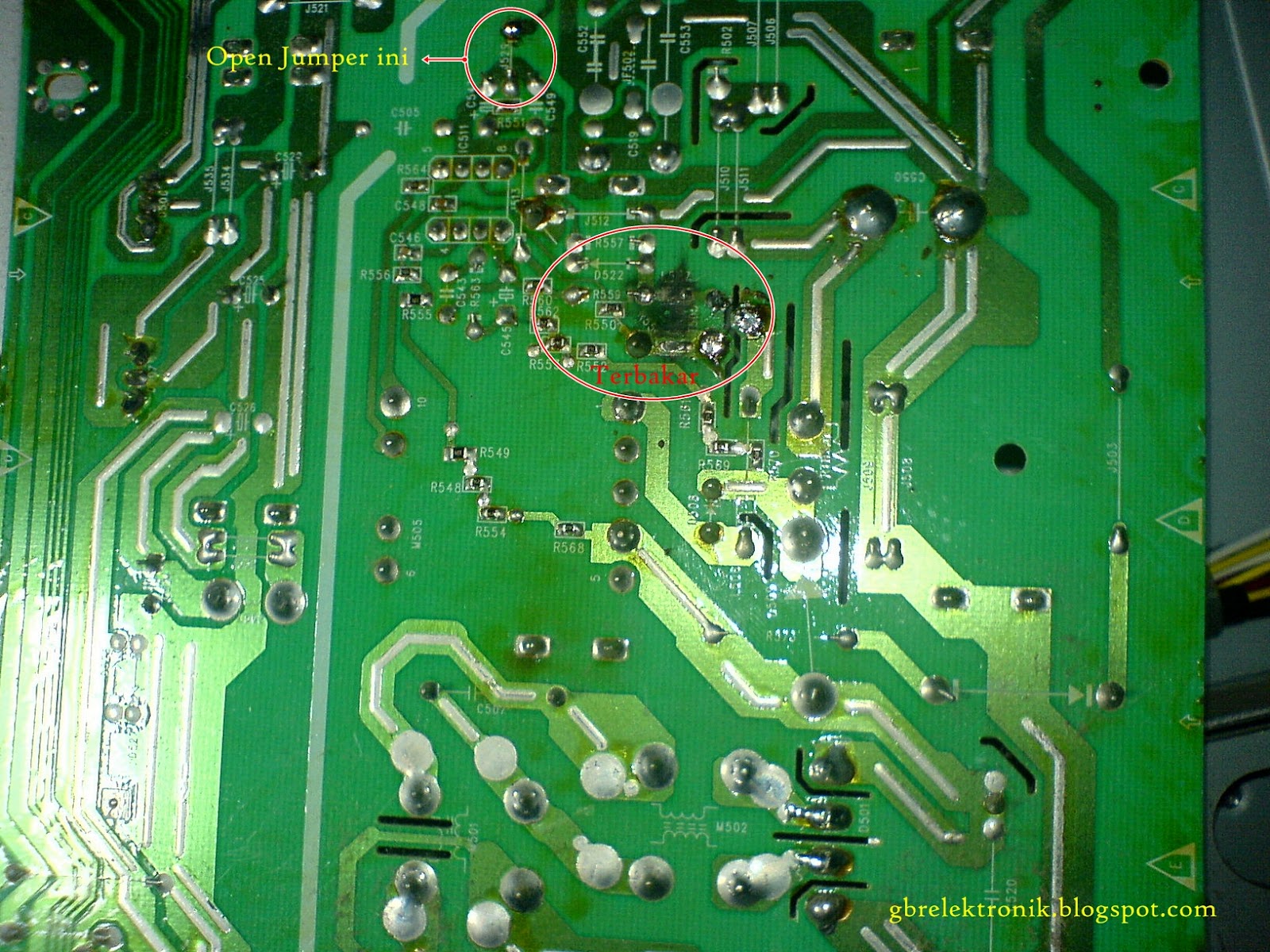

 Dapat servisan Polytron LCD 123 dengan type PLM 32B21 dengan gejala kerusakkan lampu standby mau menyala merah begitu power tv di hidupkan lampu standby mati tapi tv juga nggak mau hidup. Blok power supply  Setelah tv di buka terlihat ada beberapa komponen tv yang terbakar (FET,resistor,dioda) .Setelah baca-baca di internet baru tahu kalau yang terbakar blok inverter. Blok modul  Daripada pusing mau ganti satu set atau di perbaiki iseng jalur yang terbakar aku tetiti ternyata bukan regulator utama ,iseng jumper J529 ku lepas dari PCB lalu tv kuhidupkan ternyata mau menyala normal.Komponen yang terbakar seperti FET dan IC511 mending di lepas saja.  Semoga pengalamanku ada manfaatnya buat rekan-rekan semua.  |
Tips Mengatasi Kop Flyback Bocor
Berikut ini saya akan membagikan pengalaman saya guna mengatasi bocornya tegangan tinggi Flyback.Kasus yang di sertai bunyi mendesis dan kadang bau dari gas ozon yang sangat menyengat tentu sangat mengganggu kenyamanan saat menikmati siaran TV.
Berikut langkah-langkah mengatasi Kop FBT yang bocor
1. Bersihkan permukaan CRT di tempat Kop Flyback berada dengan kuas atau kain dan jangan lupa buang dulu muatan listrik di dalam Kop.
2. Jika dengan langkah di atas belum sembuh ganti kop flyback dengan yang masih bagus,untuk menegetahui kop yang masih bagus bisa di lihat dari bentuk fisiknya yang bagus adalah yang masih lentur dan bentuknya mulus serta jika di tempel di lantai keramik ataupun kaca masih mau lengket kuat.Kalau beli baru susah di dapat pakai saja bekas FBT yang telah rusak tapi kop masih bagus.
3. Jika dengan langkah di atas masih belum sembuh juga lapis permukaan kaca CRT tempat kop FBT berada dengan cat,saya biasa menggunakan cat meni besi mungkin bisa di coba dengan cat yang lain dan biarkan hingga kering.
4. Bila dengan langkah terakhir tegangan tinggi FBT masih bocor melalui kaca di luar kop FBT berarti tabung CRT bermasalah ganti aja dengan yang lain .
Demikian sedikit pengalaman saya mungkin dari rekan-rekan ada yang mempunyai solusi yang lain silahkan di tambahkan ...terimakasih..
